SPECIFICATIONS

Brand Name: Senbossi

Built-in Memory Size: Non

Certification: CE

High Definition Support: 1080P (Full-HD)

Hign-concerned Chemical: None

Memory Card Type: SD Card

Model Number: MD21

Origin: Mainland China

Package: Yes

Sensor Technology: CMOS

Type: Mini

style: mini camera

style2: Surveillance camera

style3: Mini camera

style4: Video surveillance

style5: Action camera

style6: Security camera

style7: HD Camcorder





Note: The body does not have memory, you need to insert a memory card. MD21 JUST Support 8-32G,thank you! (This product belongs to card direct recording, non-mobile phone WIFI shooting)

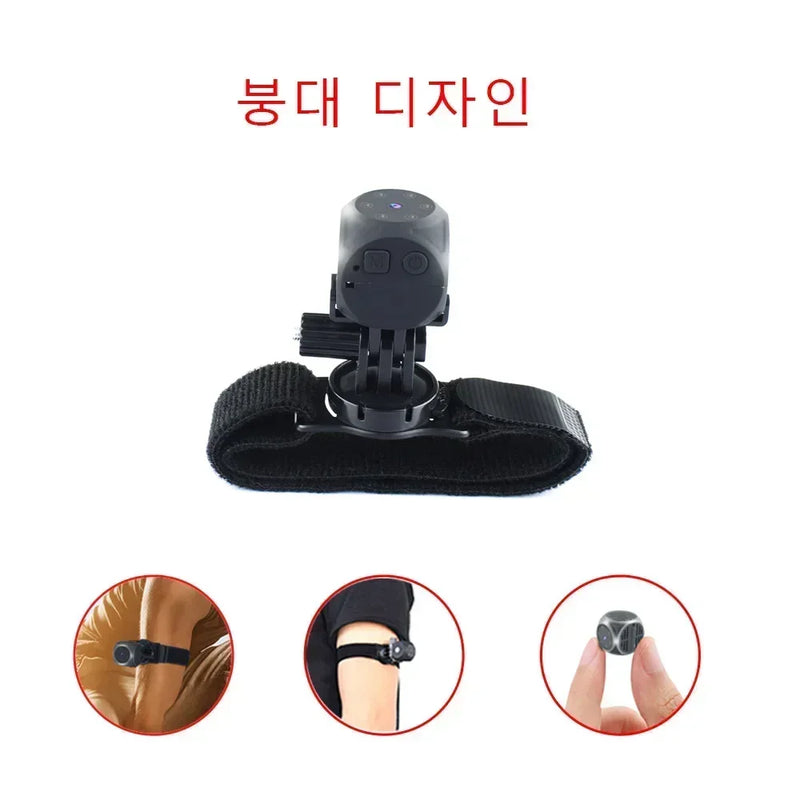

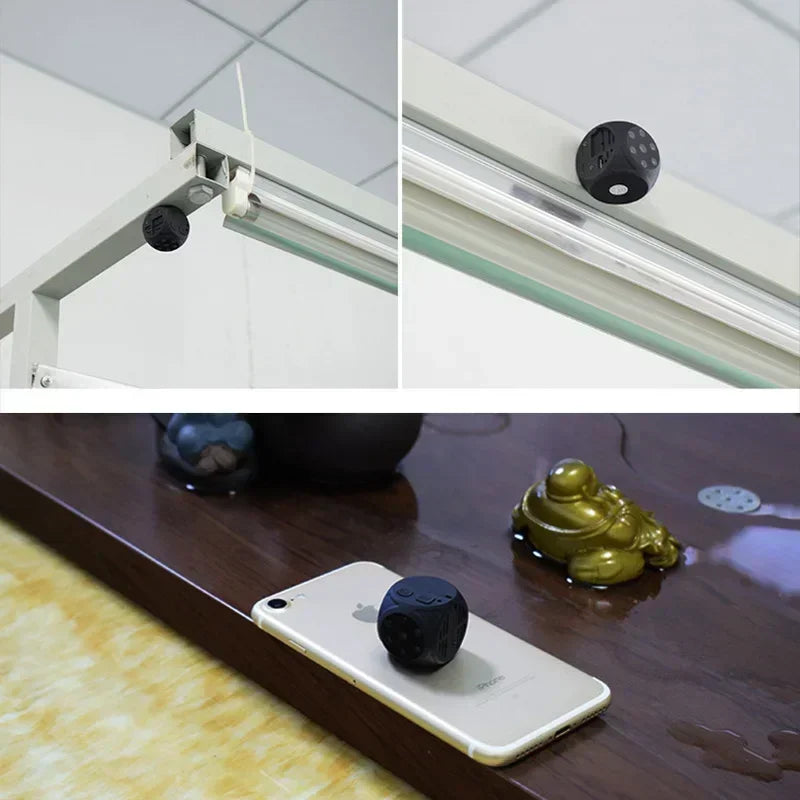

The body has a strong magnetic suction, (distribution car bracket + sports belt)

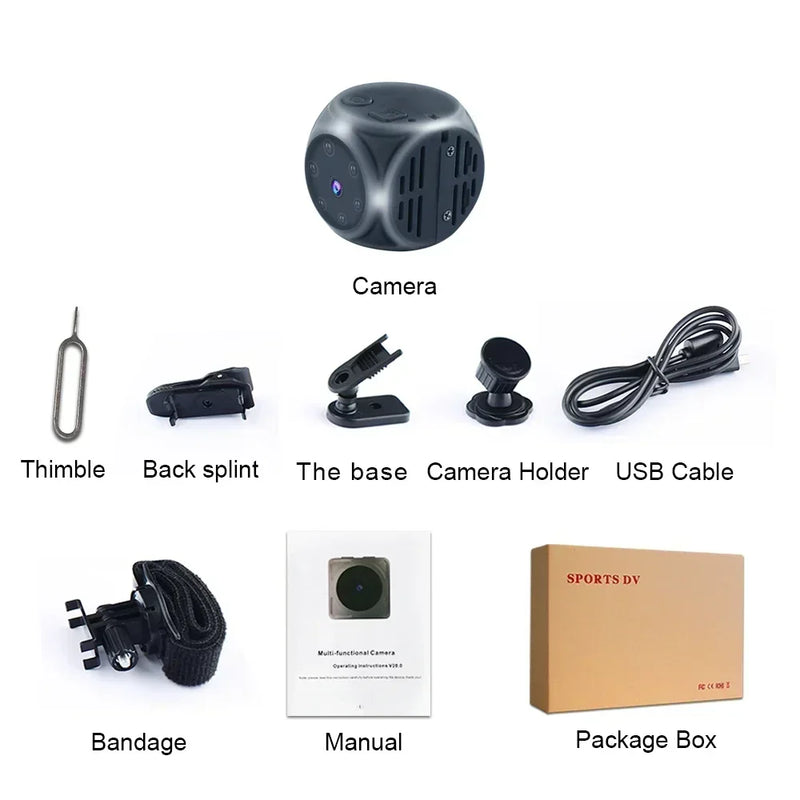

Accessories: back clip, base, DV bracket, lanyard, strap, thimble, data cable, manual

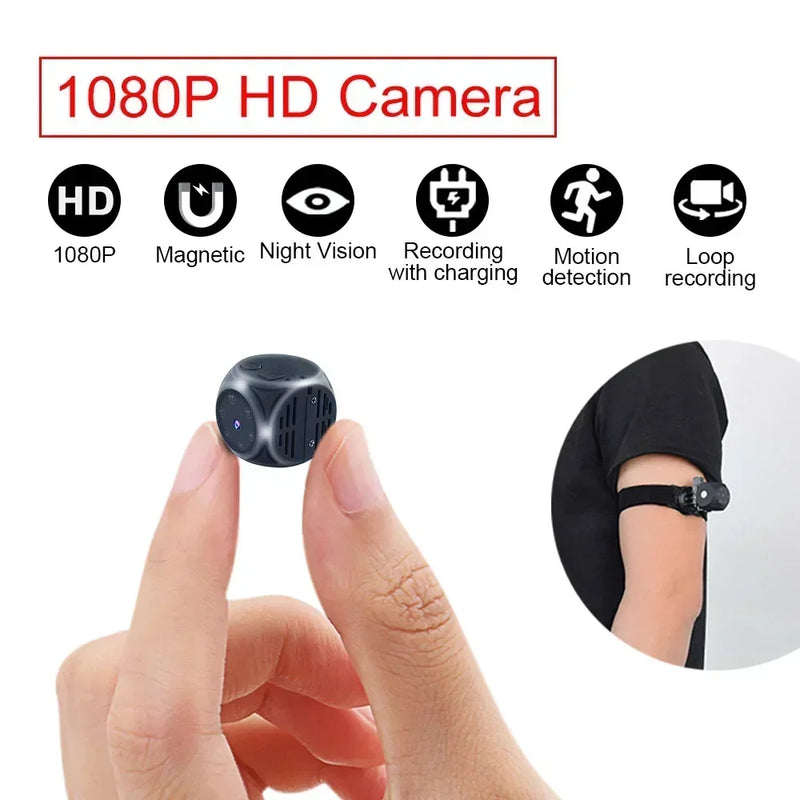

Functions: video, camera, night vision infrared, wide-angle 140 degrees, motion detection,

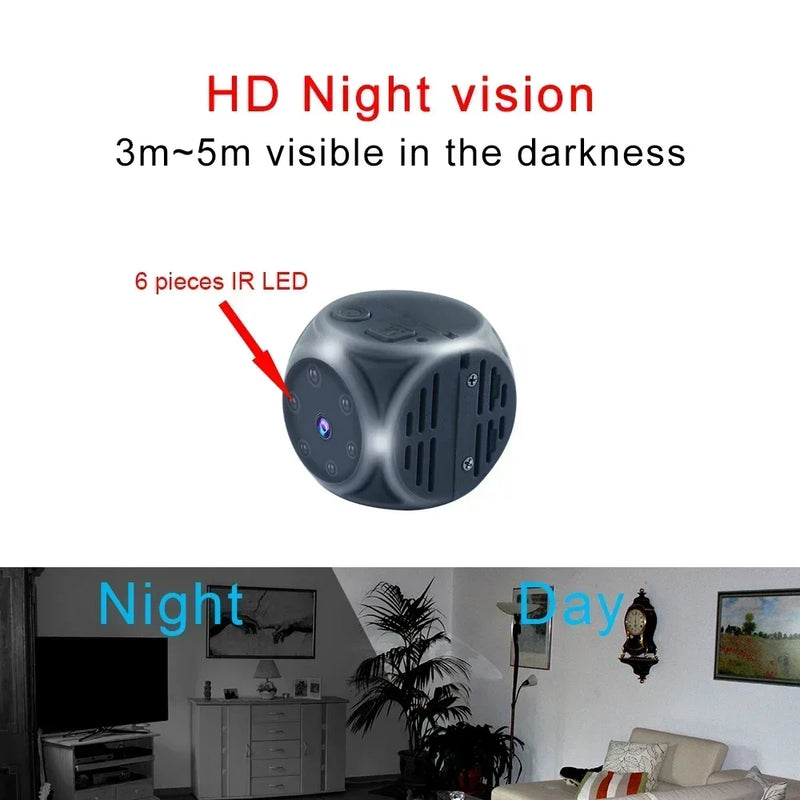

Resolution: 1920*1080P /1280*720P, 6 night vision infrared lights.


Recording time: about 70 minutes


Charging time: 2 hours


Battery: 180MAH


Function: magnetic, motion detection

Night vision: yes

NO WIFI

Support 8-32G.

How to use:

1. Long press for 3 seconds to turn on, and the blue light will always be displayed after turning on.

2. Press the power button again, the blue light flashes 3 times and then goes out, and the recording starts successfully. Press the power button again to pause the recording.

3. Long press for 5 seconds to shut down.

4. Take out the TF card.

5. Use the card reader to insert the TF into the computer.

6. Turn on the computer and view the video of the card reader.



1. Power button; 2. M button-mode button; 3. Lanyard hole; 4. Indicator light; 5. TF card slot;
6. USB; 7. Reset button; 8. Night vision light; 9. Lens
1. Product parameters:
Video format: AVI
Video encoding: M-JPEG
Video resolution: 1920*1080 1280*720
Video frame rate: 30fps
Camera resolution: 4032*3024
Picture format: JPG
Battery capacity: about 170mah
Recording time: about 60 minutes
Charging voltage: DC-5V 1A
Storage support: 8GB-32GB
Transmission speed: USB 2.0
Interface type: Mini 8PIN USB
2. Operation guide (please perform the following operations after inserting the card normally)
Note: 1. When the battery power is low, the red and blue lights flash for 5 seconds and then the machine will shut down directly.
2. There is no card when the machine is turned on, and the red and blue lights will flash for 5 seconds and then the machine will automatically shut down.
3. There is no working mode after booting, and it will automatically shut down after 1 minute.
1) Charging:
This machine has a built-in rechargeable lithium battery. When the power of the machine is low, please charge it. You can charge it in the following ways:
1. Connect a 5V charger;
2. Connect the mobile power supply;
3. Connect the computer USB port.
Note: The red light flashes when charging, and the red light is on when it is fully charged.

Press the power button for 2 seconds to turn on, the blue light will be on after turning on, and it is in standby mode.
2) 720P video recording:
In standby mode, click the power button once, and the blue light flashes 3 times to go out to enter the recording. During recording, there is no indicator light prompt; during recording, click the power button once to stop and save the recording, the blue light is on, and it returns to standby mode.
A video of 5 minutes, automatically saved in segments, and supports loop coverage.
3) 1080P video recording:
In standby mode, click the mode button once, the red and blue lights are on for 1080P recording mode, and then click the power button once, the red lights flash three times, and the red and blue lights are off at the same time to enter the recording; during recording, click the power button once to stop saving Recording, the red and blue lights are on at the same time, and it returns to standby mode.
A video of 5 minutes, automatically saved in segments, and supports loop coverage.
4) Take pictures:
In standby mode, click the mode button twice, the red light is on and the blue light is off. In this mode, click the power button once, the red light will flash once, and a picture will be generated and saved. To continue taking pictures, click the power button again.
5) The infrared light is turned on and off:
Turn on: In any mode after booting, press the power button for about 2 seconds to release, the red light flashes 2 times, and the infrared night vision light is turned on.
Turn off: In any mode, press the power button for about 2 seconds to release, the red light flashes 3 times, and the infrared night vision function is turned off.
6) Motion detection mode (720P -1080P):
720P motion detection: After booting, the blue light is always on, long press the mode button for 3 seconds and release it, the red light flashes 3 times, and the blue light is on, that is, the motion detection recording mode is turned on. After a moving object is detected , The blue light goes out to enter the motion detection recording; after 5 minutes, the recording is automatically saved. If there is no moving object, the blue light is on and the machine is in the detection state; when there is a moving object, the blue light is off, and the video is entered. (Press any button once to exit the motion detection mode).
1080P motion detection: After booting into standby mode, click the mode button once, the red and blue lights are on, the machine is in 1080P video mode, long press the mode button for 3 seconds, the red lights flash 3 times, red and blue lights at the same time to enter motion detection Recording mode, after detecting the movement of the object, the red and blue lights will be off at the same time to enter the motion detection recording. After 5 minutes, the video is automatically saved. If there is no moving object, the red and blue lights are on, and the machine is in the detection state; when there is a moving object, the red and blue lights are off, and the video is entered. (Press any button once to exit the motion detection mode).
7) Record while charging:
Connect the charger or mobile power supply to record while charging, or you can manually stop recording and switch to any mode.
8) Reset:
The machine crashes, the buttons are invalid, and cannot be used normally, you can click the button in the reset hole to reset the machine.
9) Shut down:
In any mode, press and hold the power button for about 6 seconds, and all the red and blue lights will go out to shut down. When no functions are used in standby mode, it will automatically shut down after 1 minute of standby.
10) Time modification:
After the machine is turned on, it will automatically create a TXT text file (TIMEREST.txt) in the root directory of the TF card. When it is turned off, use the data cable to connect to the computer. After opening the TIMEREST.txt file on the removable disk, edit the time and format (year) you need. Month, day, hour, minute and second) After 20180101192526 Y, save the file, and the machine can be burned into the machine normally after the boot time.
The machine does not display the time by default. If you need to display the time watermark, change the N in the file to Y. The reference format is as follows:
1: 20180101192526 Y (with time watermark display)
2: 20180101192526 N (no time watermark display)

Precautions:
Use occasion: Please strictly abide by the relevant laws of the country where it is used, and do not use this product for any illegal purpose.
